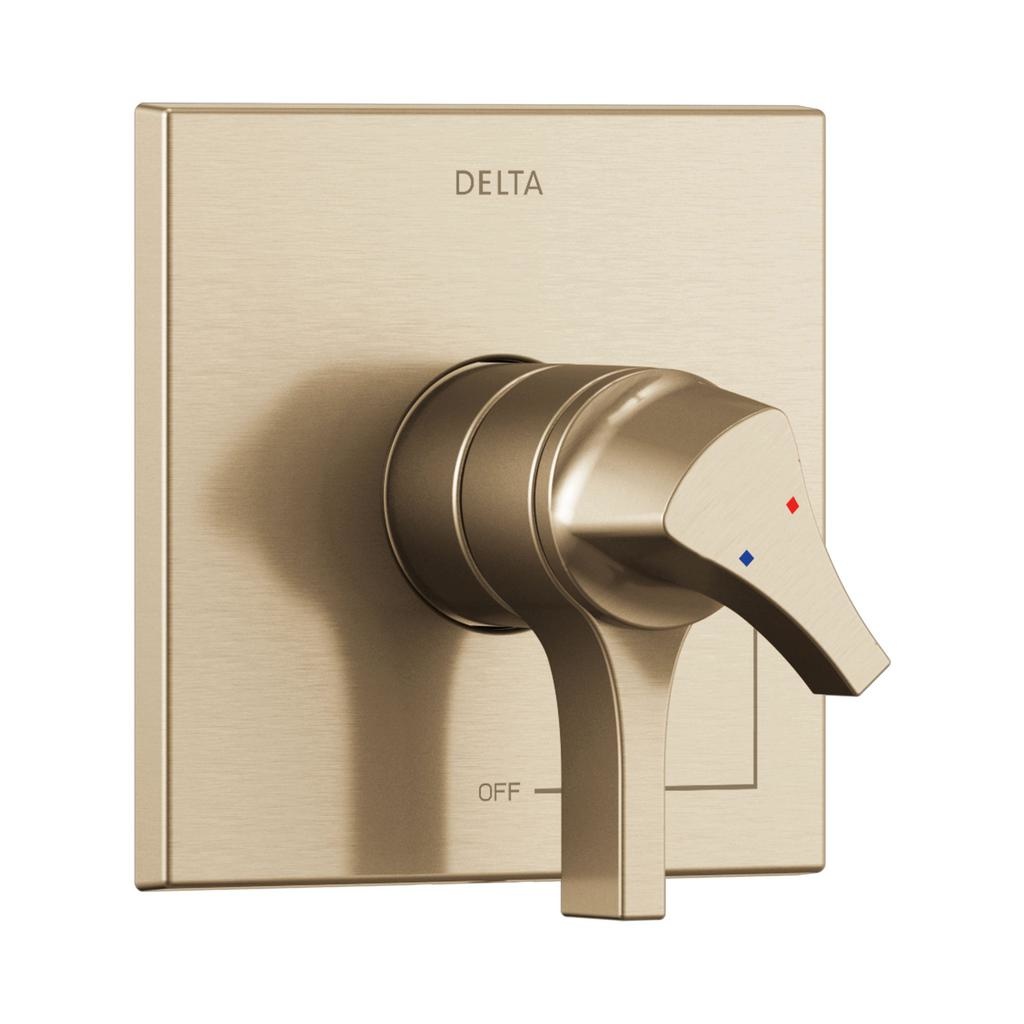

Delta T17074 Zura Monitor 17 Series Valve Only Trim Champagne Bronze
ZURA COLLECTION
The Zura design is a precise marriage of rounded, rectangular and triangular elements and offers innovative, geometric styling to complement our current contemporary lineup.
Control volume and water temperature independently with two separate handles for more refined control of your shower experience
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
ADA Compliant
Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
Metal lever handle meets standards set by Americans with Disabilities Act (ADA)
1/2 in. rough-in
Back-to-back installation capability
Temperature only controled with handle
Field adjustable to limit handle rotation into hot water zone
120 maximum handle rotation
Red/blue pad print temperature indicator on the temperature adjustment dial
Lifetime Faucet and Finish Warranty
Valve Type: Dual-function pressure balance cartridge
STANDARD SPECIFICATIONS:
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice Universal rough valve body (R10000 Series)
Back-to-back installation capability
Solid brass forged body
Lever volume control handle; temperature adjustment dial
Field adjustable to limit handle rotation into hot water zone
Maximum dial rotation adjustable between 90 and 180
All parts replaceable from the front of the valve
Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX

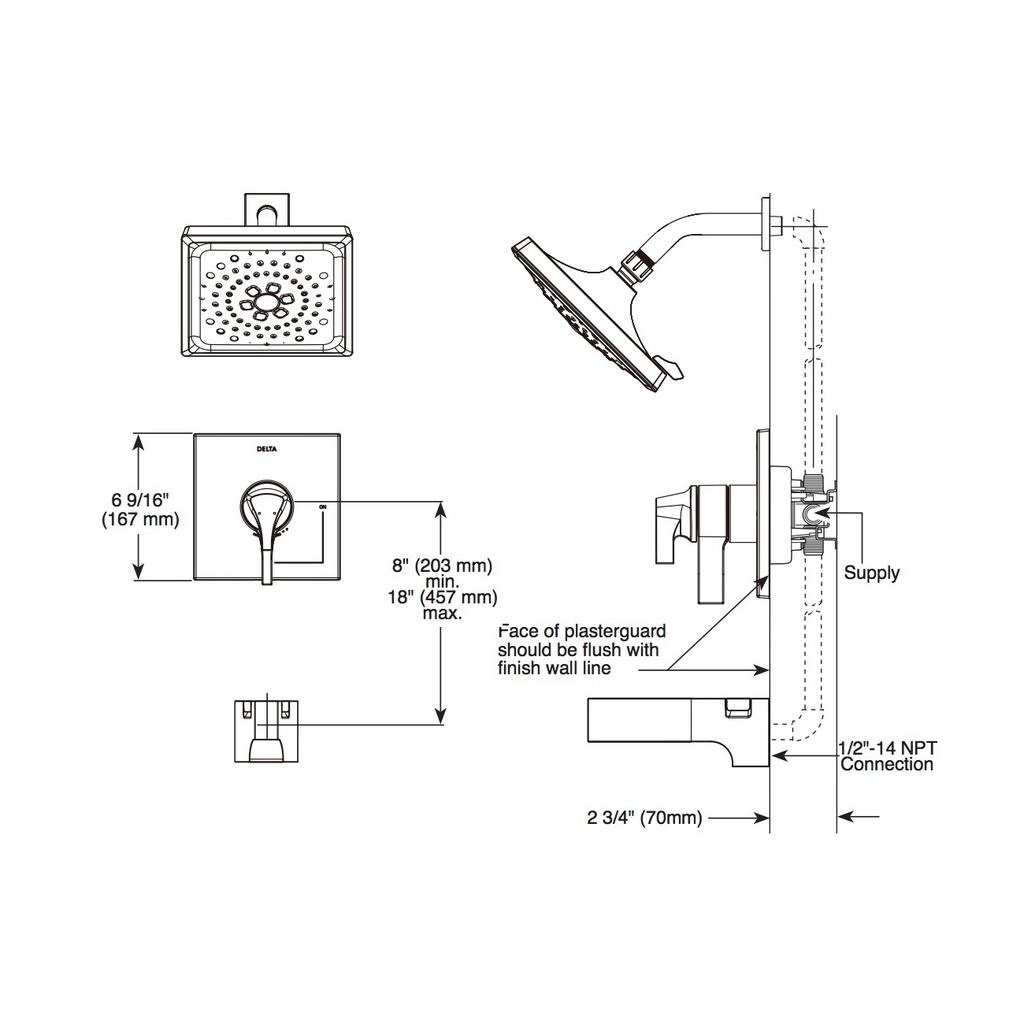

Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
Red/blue pad print temperature indicators on temperature adjustment dial
Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness. RP77992 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish
WARRANTY
Parts and Finish - Lifetime limited warranty; or for commercial purchasers, 10 years for multi-family residential (apartments and condominiums) and 5 years for all other commercial uses, in each case from the date of purchase.
Electronic Parts and Batteries (if applicable) - 5 years from the date of purchase; or for commercial purchasers, 1 year from the date of purchase. No warranty is provided on batteries.
