    ACO 93870 Flange Edge Shower Channel Stainless Steel Body 39.37 Center Outlet

    ACO ShowerDrain channel and grate system shall be stainless steel grade 304 manufactured by ACO, Inc. USA.
    The surface finish shall be Electropolished* OR Oil Rubbed Bronze*. Grate shall be Flag/Hawaii/Mix/Pixel/Quadrato/Wave/Tile.

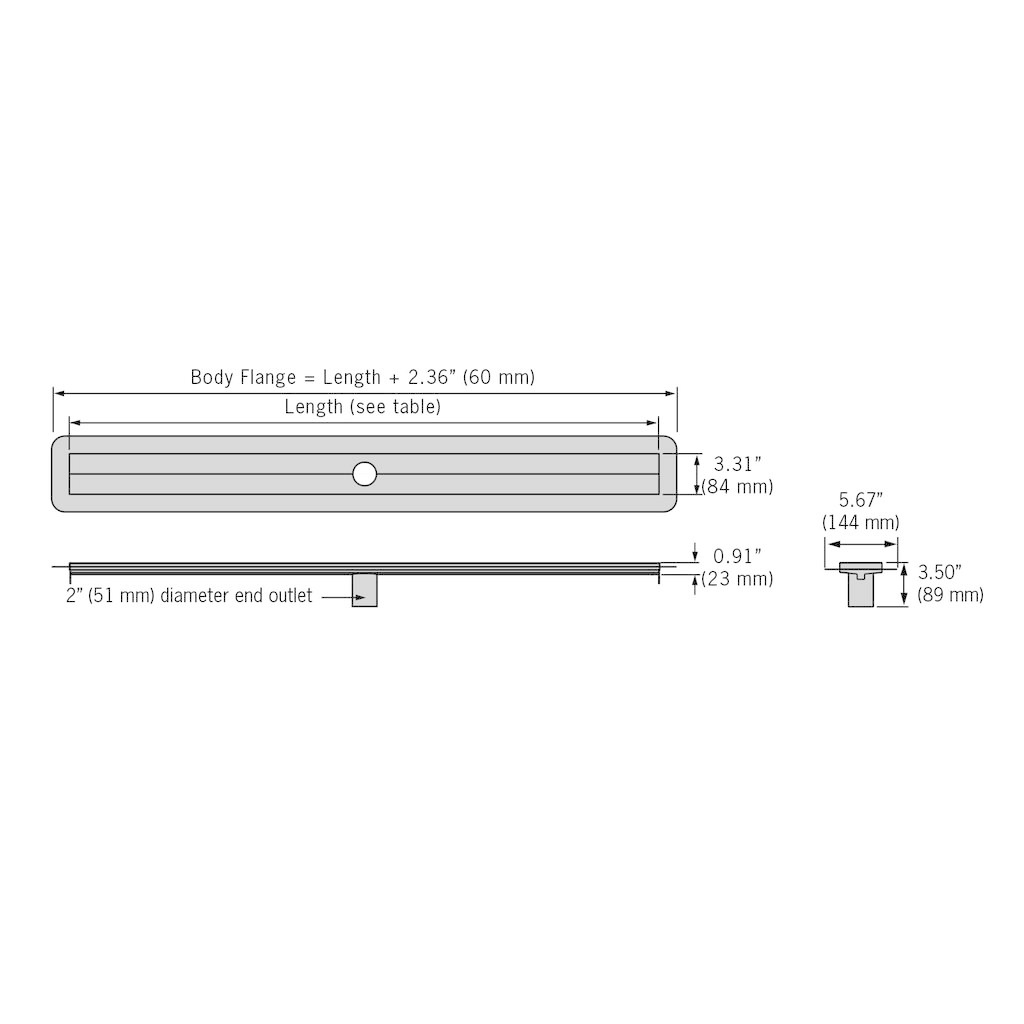

    Shower channels shall be 84 mm (3.31") wide, flange provides overall width of 144 mm (5.67") with length as specified on Architects plans / Architects specification. Outlet spigot (O.D.) diameter shall be 51 mm (2.00").
    The stainless steel coupling connector [to provide connection to S/S spigot of shower channel and plumbing pipe system] shall be supplied by ACO Inc.
    ACO recommends checking local plumbing codes prior to installation.
    The system shall be installed in accordance with the manufacturers instructions and recommendations.

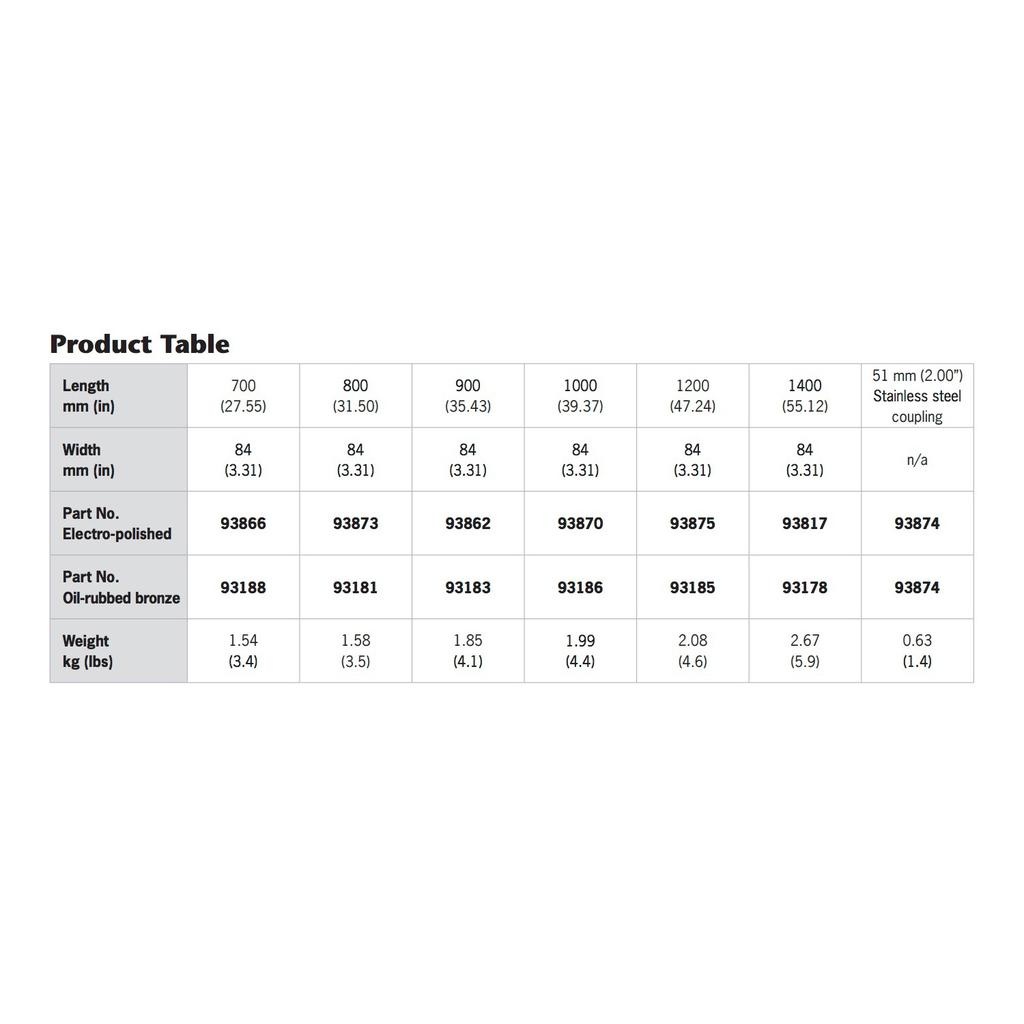

    Length (mm) inches: 1000 (39.37)
    Width (mm) inches: 84 (3.31)
    Weight lbs: 1.99 (4.4)
