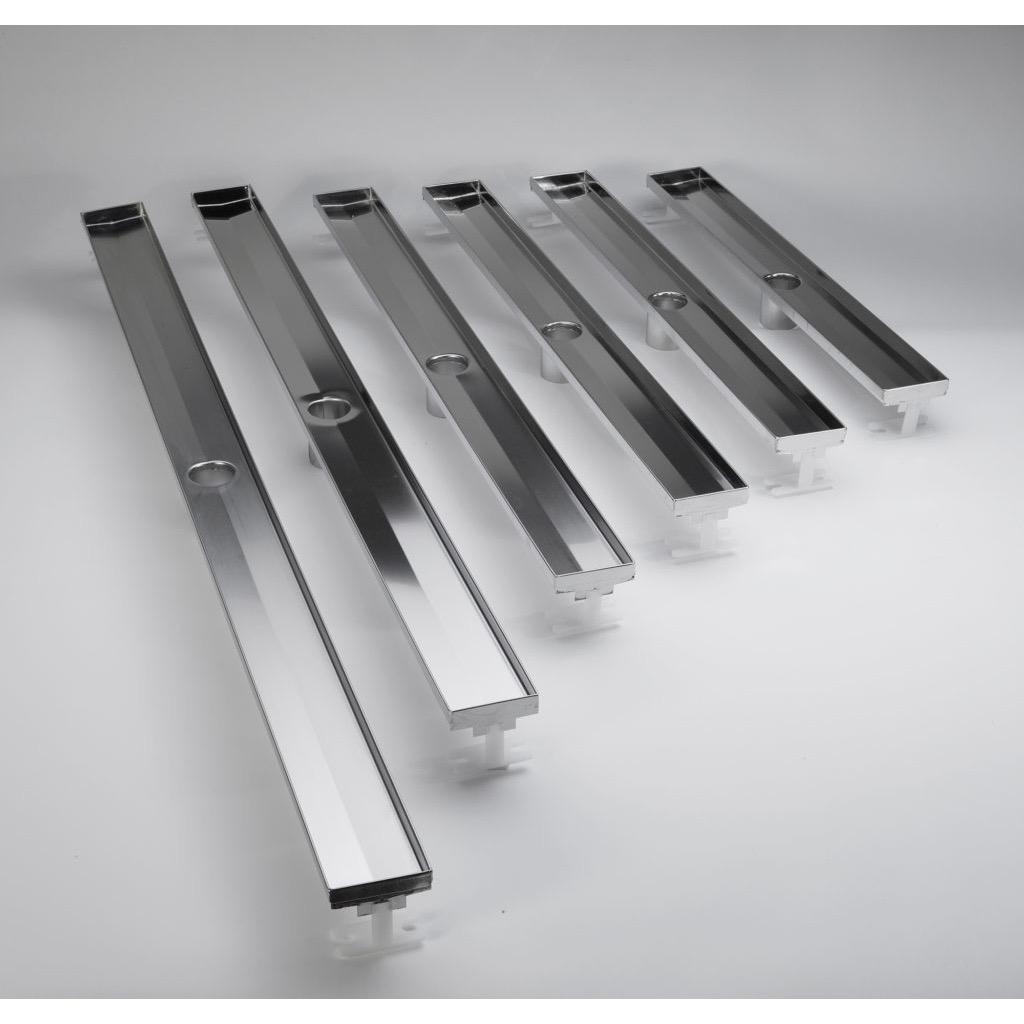

ACO 93865 Plain Edge Shower Channel Stainless Steel Body 35.43 Center Outlet

    405.00 405.00 405.0 CAD

    405.00

    This combination does not exist.

    Add to Cart Buy Now

    ACO 93865 Plain Edge Shower Channel Stainless Steel Body 35.43 Center Outlet

    ACO ShowerDrain channel and grate system shall be stainless steel grade 304 manufactured by ACO Polymer Products, Inc. USA.
    The surface finish shall be Electropolished* OR Oil Rubbed Bronze*. Grate shall be Flag*/Hawaii*/Mix*/Pixel*/Quadrato*/Wave*/Tile*.

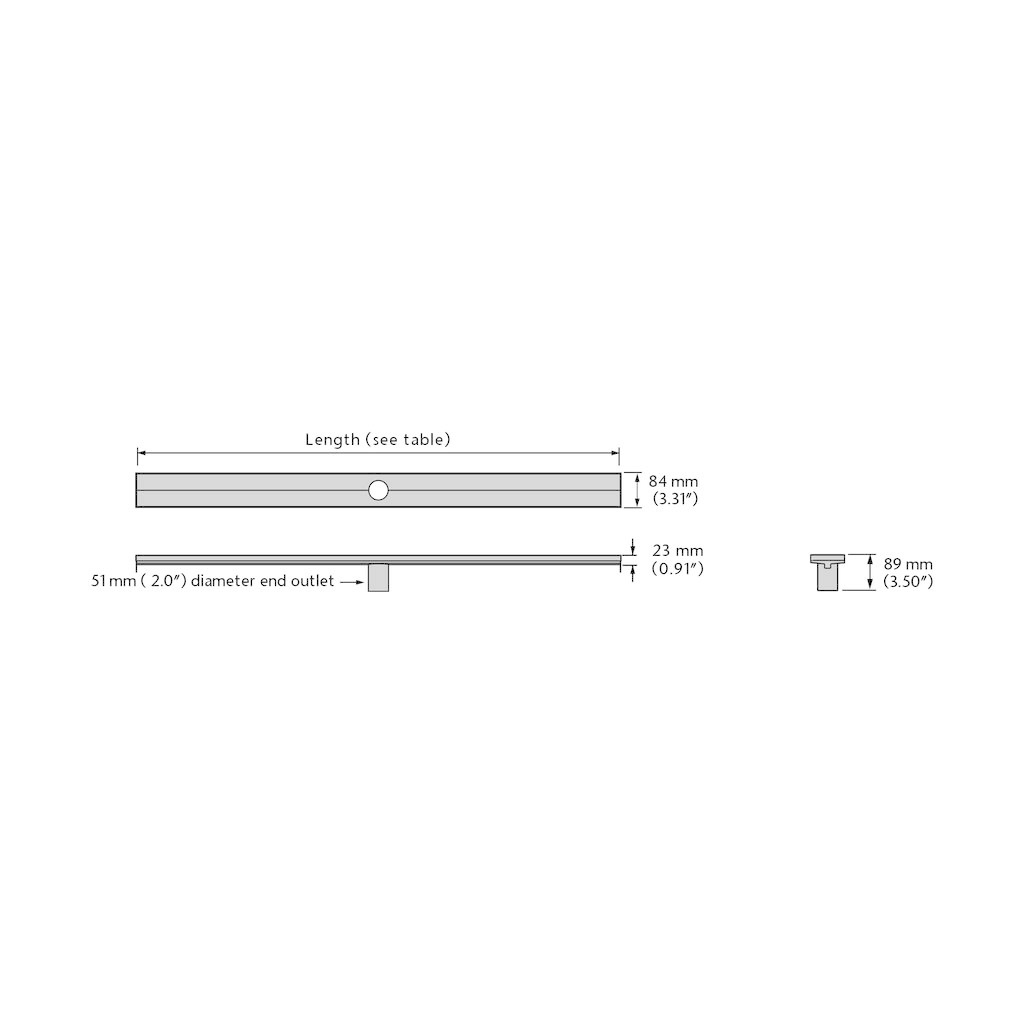

    Shower channels shall be 3.31" (84mm) wide, with length as specified on Architects plans / Architects specification. Outlet spigot (O.D.) diameter shall be 50mm (2.0").
    The PVC or cast iron membrane coupling [to provide connection to S/S spigot of shower channel and plumbing pipe system] shall be supplied by
    ACO Polymer Products Inc. This PVC or cast iron drain body will provide clamping ability for waterproof membrane. (supplied by others)
    ACO recommends checking local plumbing codes prior to installation.
    The system shall be installed in accordance with the manufacturers instructions and recommendations

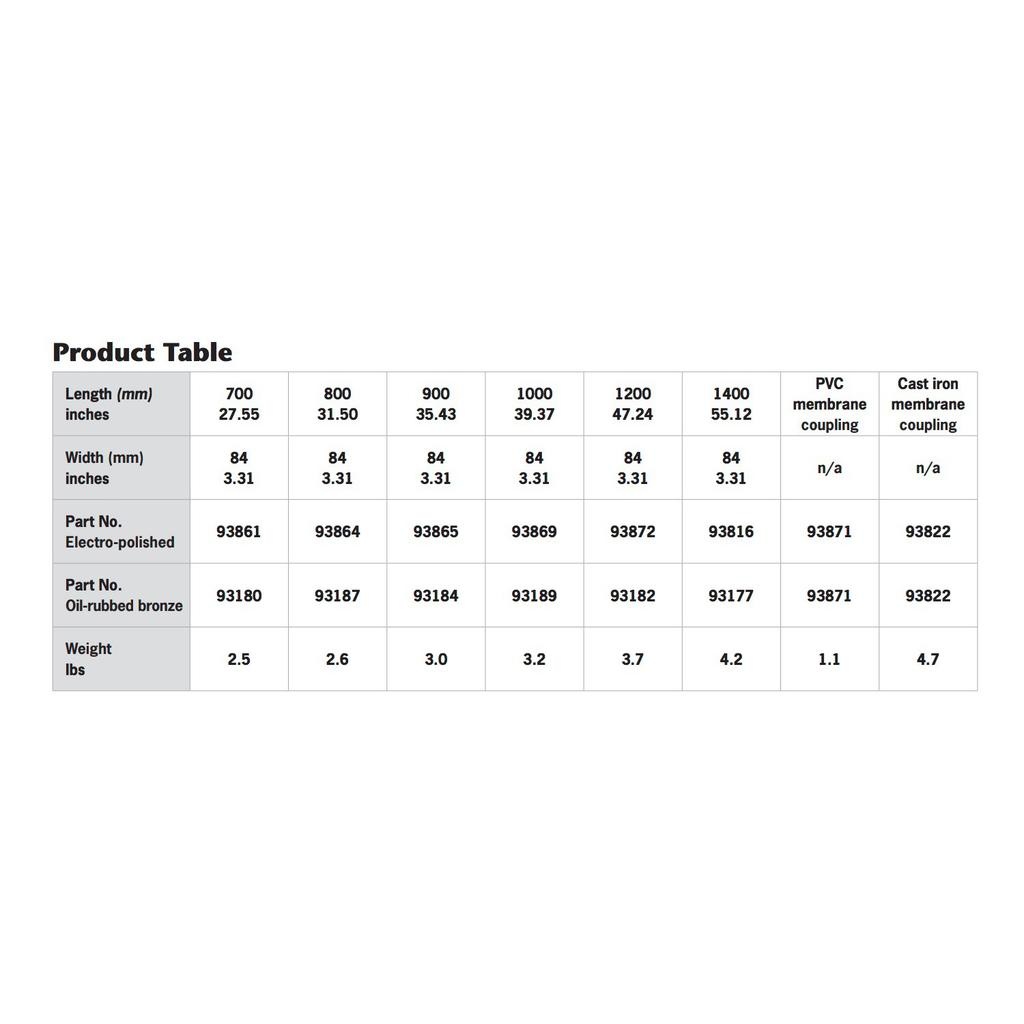

    Length (mm) inches: 900 35.43
    Width (mm) inches: 84 (3.31)
    Weight lbs: 3.0
