ACO 92237 Flange Edge Shower Channel Stainless Steel Body 47.25 End Outlet

https://www.swisspureair.com/web/image/product.template/117690/image_1920?unique=5787479

650.00 650.0 CAD 650.00

650.00

Not Available For Sale

This combination does not exist.

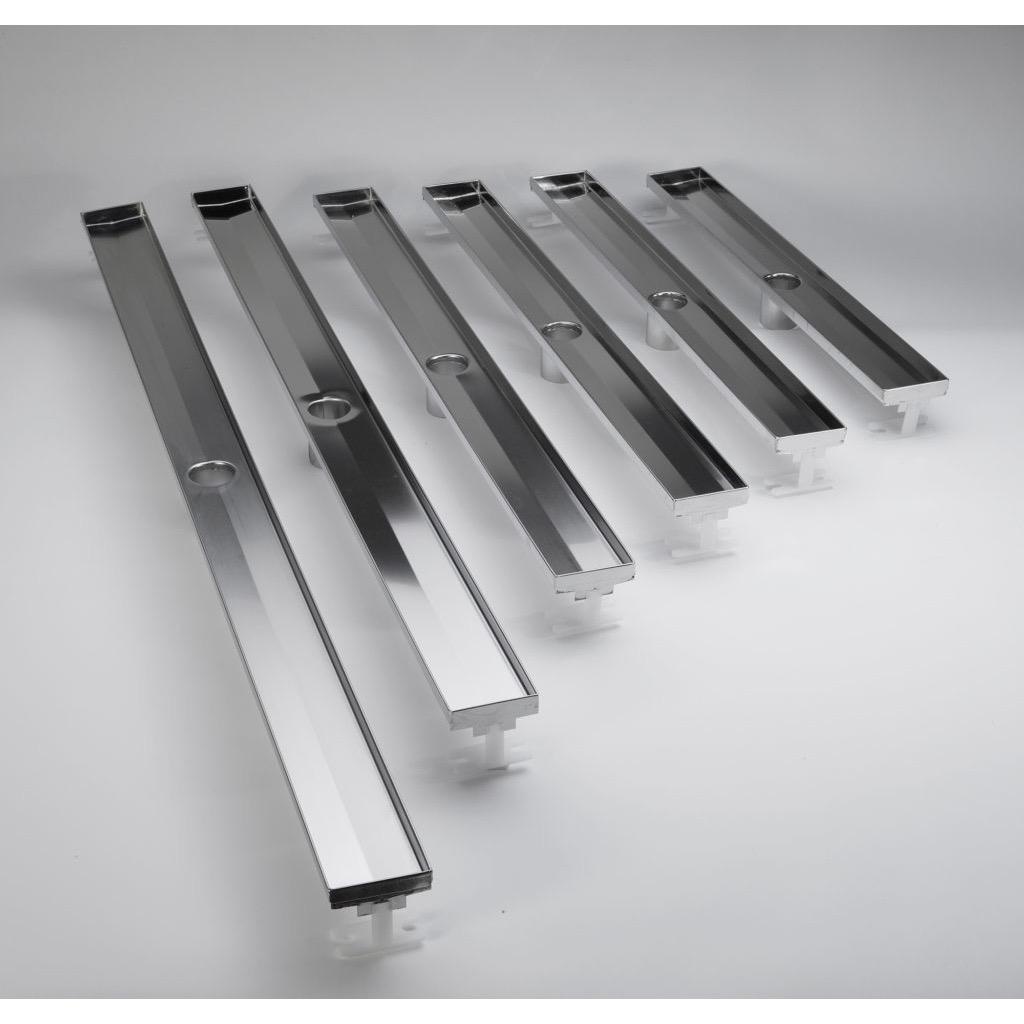

ACO 92237 Flange Edge Shower Channel Stainless Steel Body 47.25 End Outlet

The QuARTz ACO ShowerDrain channel and grate system shall be stainless steel grade 304 manufactured by ACO, Inc. USA.
The surface finish shall be Electropolished. Grate shall be Quadrato/Piano/Wave/Mix/Linear/Tile/Hawaii/Solid/Signature/ OR Glass.

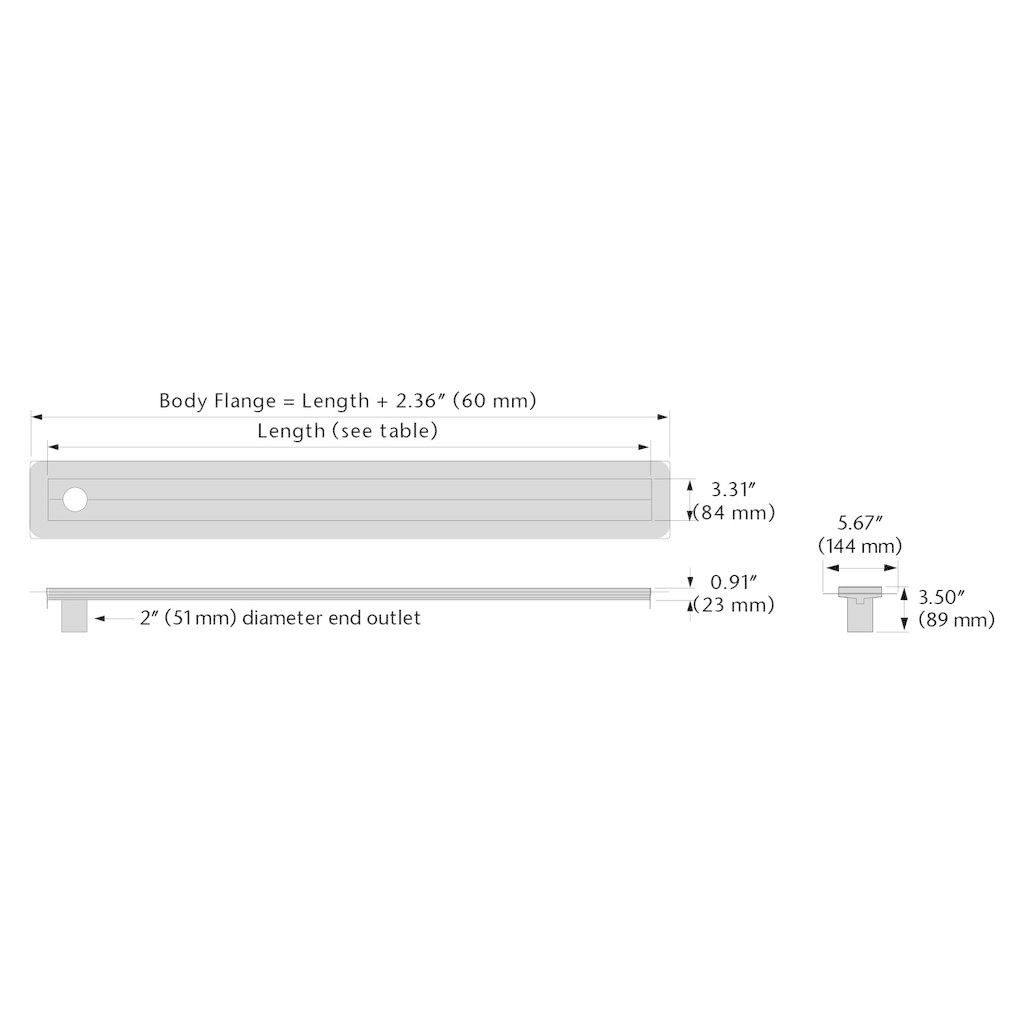

Shower channels shall be 84 mm (3.31") wide, flange provides overall width of 144 mm (5.67") with length as specified on Architects plans / Architects specification. Outlet spigot (O.D.) diameter shall be 51 mm (2.00").
The stainless steel coupling connector [to provide connection to S/S spigot of shower channel and plumbing pipe system] shall be supplied by ACO Inc.
ACO recommends checking local plumbing codes prior to installation.
The system shall be installed in accordance with the manufacturers instructions and recommendations.

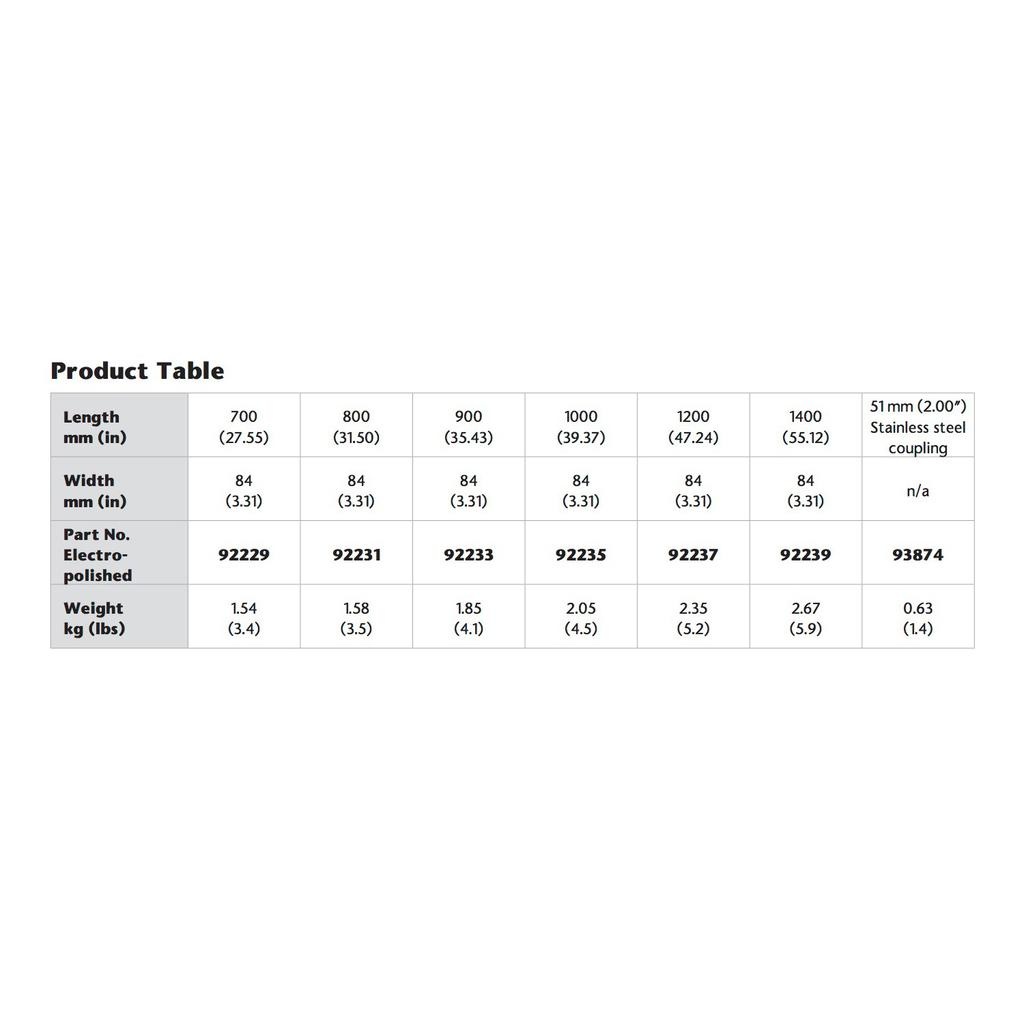

Length (mm) inches: 1200 (47.24)
Width (mm) inches: 84 (3.31)
Weight lbs: 2.35 (5.2)
