ACO 9010.72.96 Flange Edge Shower Channel Stainless Steel Body 55.12 With Membrane

    635.00 635.00 635.0 CAD

    635.00

    This combination does not exist.

    Add to Cart Buy Now

    ACO 9010.72.96 Flange Edge Shower Channel Stainless Steel Body 55.12 With Membrane

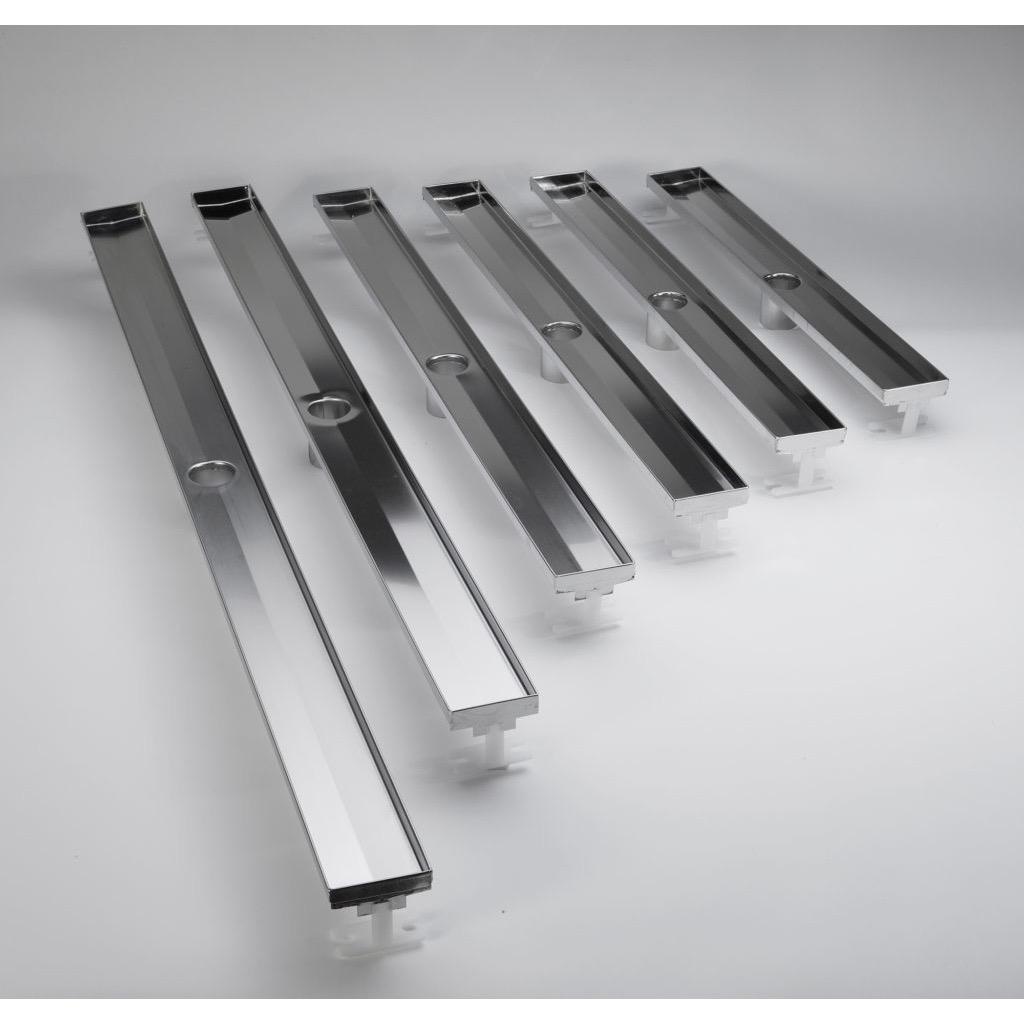

    The QuARTz ACO ShowerDrain channel and grate system shall be stainless steel grade 304 manufactured by ACO, Inc. USA.
    The surface finish shall be Electropolished. Grate shall be Quadrato/Piano/Wave/Mix/Linear/Tile/Hawaii/Solid/Signature/ OR Glass.

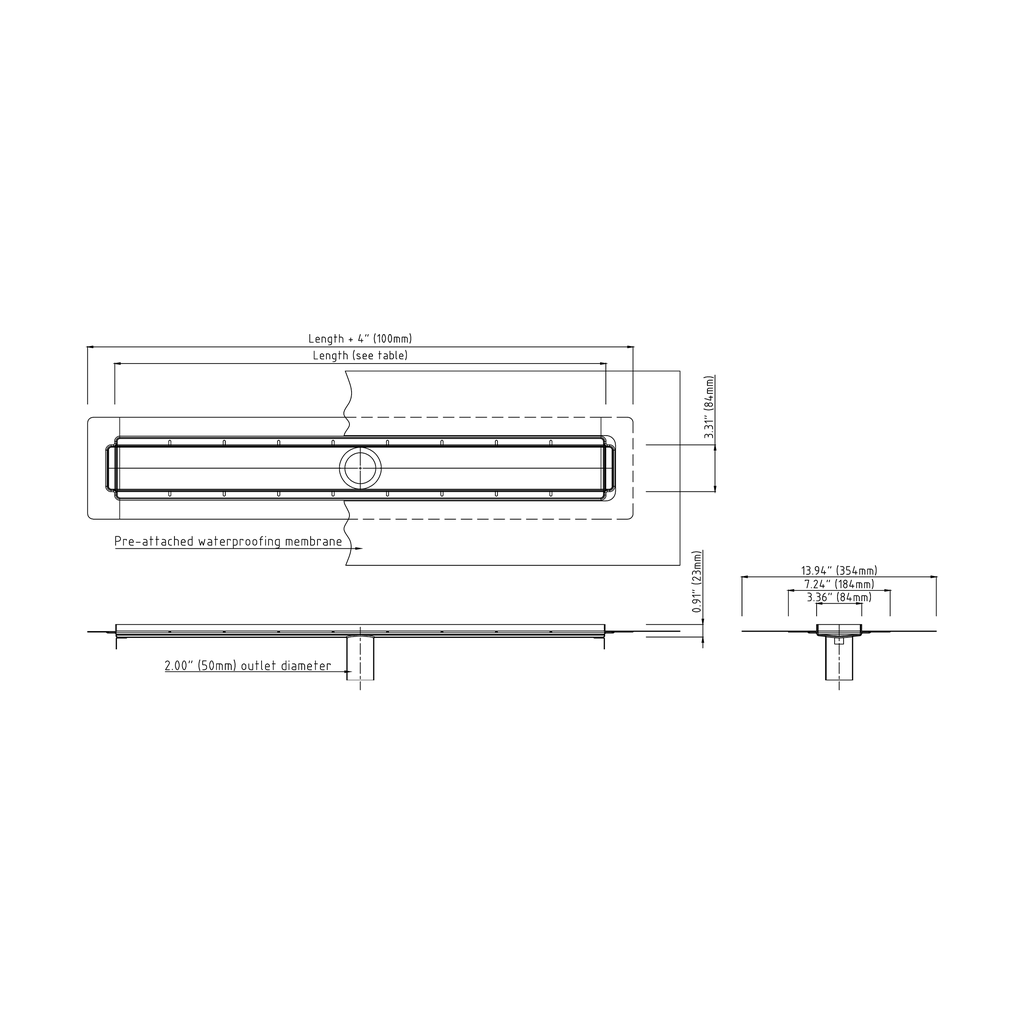

    Shower channels shall be 84 mm (3.31") wide, flange provides overall width of 187 mm (7.36) with length as specified on Architects plans / Architects specification. Outlet spigot (O.D.) diameter shall be 51 mm (2.00"). The shower channel should be manufactured with 4 mm wide weep holes at membrane level, on both sides and located at 100 mm c/c to allow for secondary drainage at membrane level.
    The stainless steel coupling connector [to provide connection to S/S spigot of shower channel and plumbing pipe system] shall be supplied by ACO Inc.
    ACO recommends checking local plumbing codes prior to installation.
    The system shall be installed in accordance with the manufacturers instructions and recommendations.

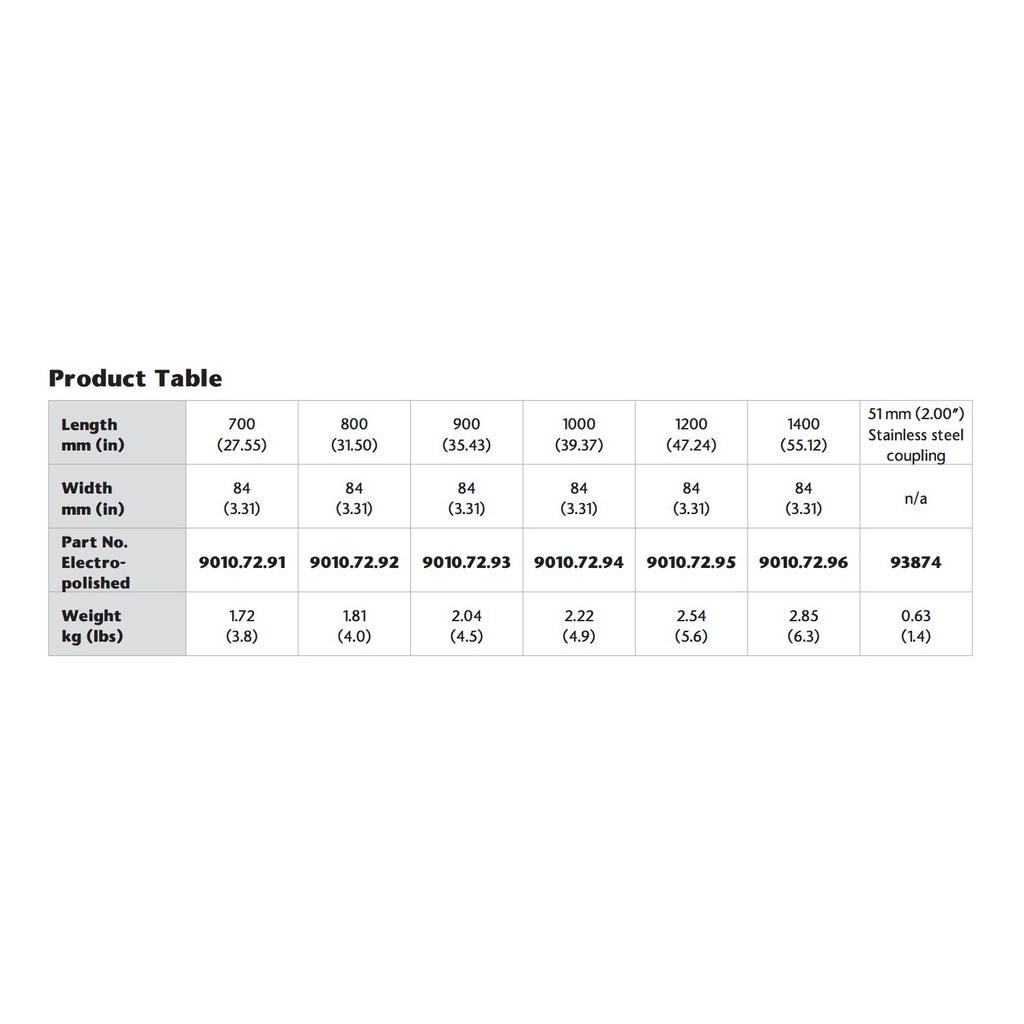

    Length (mm) inches: 1400 (55.12)
    Width (mm) inches: 84 (3.31)
    Weight lbs: 2.85 (6.3)
