ACO 37420 Linear Stainless Steel Grate 27.55
ACO ShowerDrain channel and Linear grate system shall be stainless steel grade 304 3mm bar with anti-slip nodules, manufactured by ACO, Inc. USA.
The surface finish shall be Electropolished.

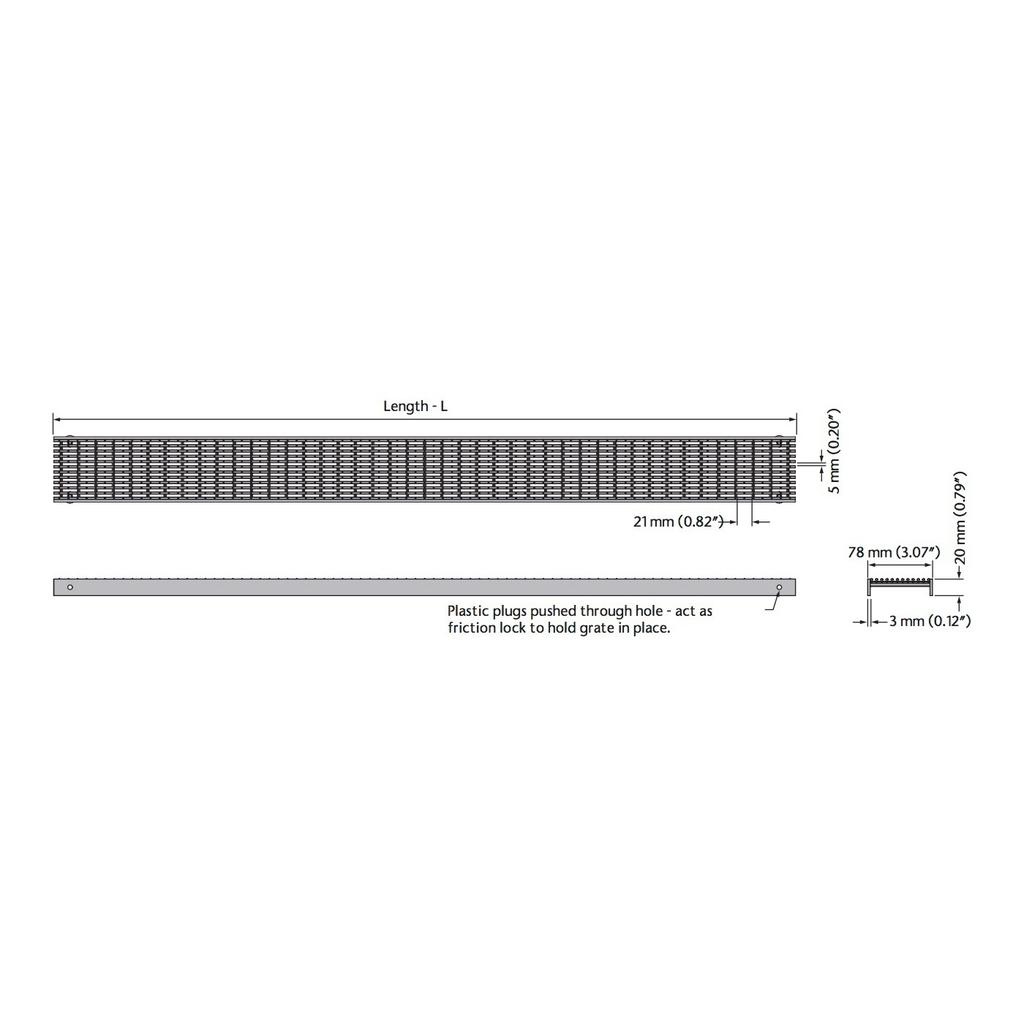

Grate shall be 78 mm (3.07") wide, with length as specified on Architects plans / Architects specification.
Shower channel shall be Plain Edge OR Flanged Edge. (See separate Spec Info Sheet for details)
ACO recommends checking local plumbing codes prior to installation.
The system shall be installed in accordance with the manufacturers instructions and recommendations.
Length (mm) inches: 700 (27.55)
Width (mm) inches: 77 (3.03)
Weight lbs: 1.36 (3.0)
Intake area sq. in: 249.7 (38.71)
