3M DP1XX High Flow Series Dual Port Single Manifold Assembly
This product is no longer available.
3M DP1XX High Flow Series Dual Port Single Manifold Assembly
Product Details
Single head assembly
Dual outlet design
3/4" MNPT inlet and outlet water connections
Designed for use with 3M High Flow Series water filtration cartridges
UPC 00016145209642
3M Product Number 6228603
3M ID 70020228139

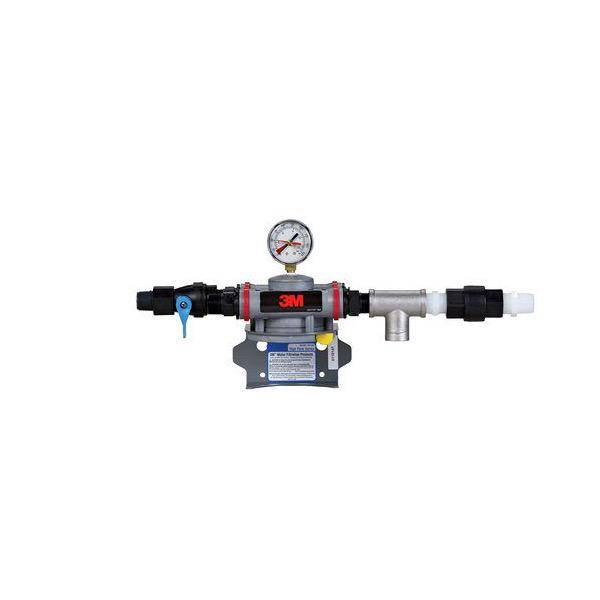

Our 3M High Flow Series Dual Port Single Manifold Assembly (DP1XX) features a single head and 3/4" MNPT inlet and outlet water connections. One of the two outlets includes a head for installing HF8-S replacement filter for applications requiring scale inhibition. The 3M filter manifold assemblies provide a vehicle for appropriate water quality to equipment requiring different water characteristics for various applications. These products are innovatively designed for ease of installation and maintenance. Most manifold models include a pressure gauge to monitor differential water pressure.
Creative Filtration Technology
3M Water Filtration Products systems and cartridges offer a wide range of solutions designed to address many types of water quality concerns. Third-party certifications, such as NSF and WQA, are an advantage provided on many 3M Water Filtration Products. 3M Purification is a known leader in filtration technology recognized for innovation, trust, and quality around the world.
Recipe Quality Water
Having cleaner and clearer water for your business is both a pleasure and a reassurance that you're giving your customers recipe quality water. With a water filtration system from 3M Purification, you can provide filtered water that may help protect your equipment and your profits. From commercial point-of-entry to dedicated point-of-use water filtration systems, look to 3M Purification to help you find the right solution.
Applications
|
Coffee and Hot Tea, Cold Beverage, Combination Systems, Ice, Steamer, Combi Oven, and Proofer Oven Water Filtration
|
Brand
|
3M
|
Depth
|
5.3 Inch
|
Depth (metric)
|
13.5 Centimeter
|
Filter Type
|
SQC Filtration System
|
Flow Rate
|
Up to 5 gpm
|
Height
|
8.4 Inch
|
Height (Metric)
|
21.4 Centimeter
|
Industries
|
Commercial
|
Inlet Outlet Size
|
3/4" MNPT
|
Length
|
19.1 Inch
|
Length (Metric)
|
48.5 Centimeter
|
Maximum Operating Temperature (Celsius)
|
37.8 Degree Celsius
|
Maximum Operating Temperature (Fahrenheit)
|
100F
|
Pressure Range
|
125 psi
|
Pressure Range (metric)
|
862 kPa
|
