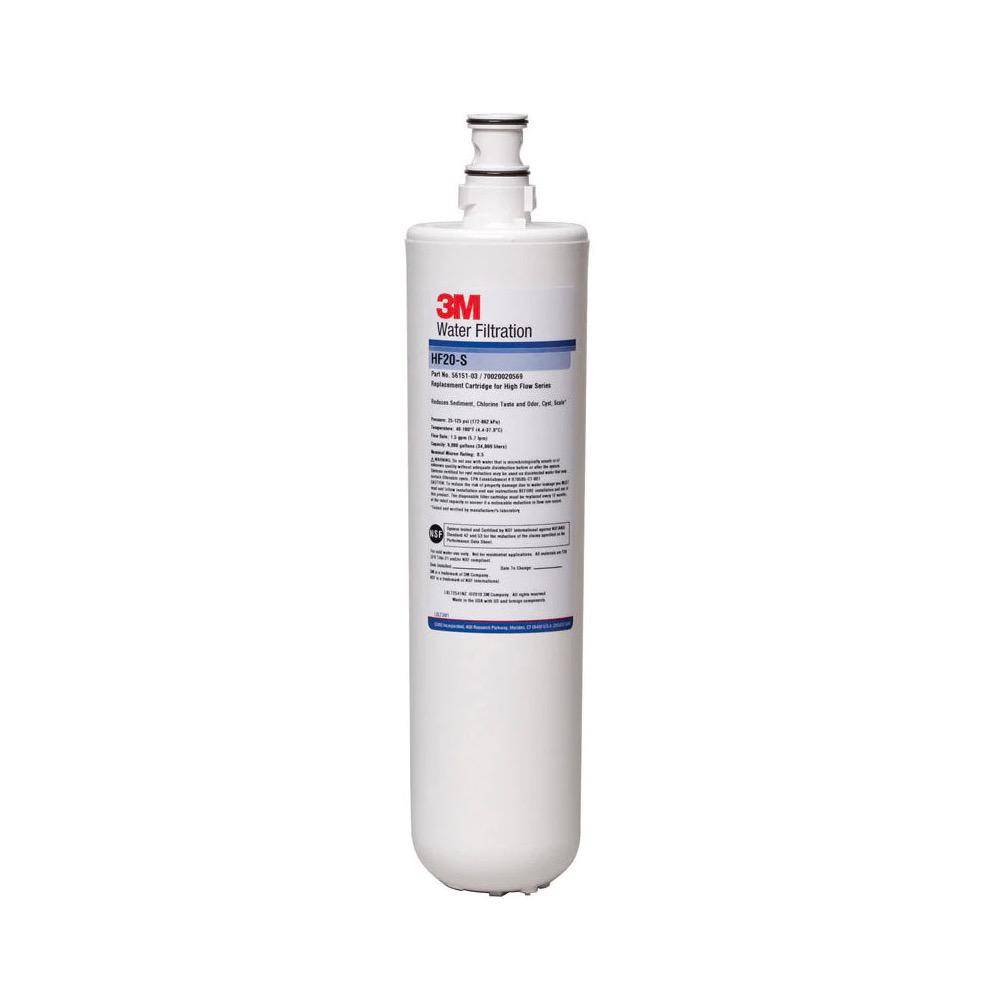

3M HF20-S Replacement Cartridge

This product is no longer available.


3M HF20-S Replacement Cartridge

Replacement Cartridge 5615103
3M Water Filtration Products HF20-S Replacement Cartridge 5615103 effectively combines cyst, sediment and chlorine reduction for equipment protection and clearer, great tasting ice. 3M Water Filtration Products HF20-S Replacement Cartridge has a built-in scale inhibitor which reduces the ability of calcium and magnesium to precipitate on the evaporator plates as hard scale. For Low Flow Cubers to 750 lbs., High Flow Cubers to 200 lbs. or Flakers to 1,200 lbs. Filter Cartridges require no pre-activation and incorporate carbon block filtration medium and scale inhibitor.

Effectively reduces sediment and chlorine taste and odor for better equipment protection and clearer, great tasting ice.
Tested and verified by manufacturers laboratory to Standard 53 for cyst reduction (HF20-S replacement cartridge).
NSF Standard 42 and/or FDA CFR-21 compliant materials.
Built-in scale inhibitor reduces lime scale build-up on evaporator plates as tested by 3M Purification.
Valve-in-head design simultaneously shuts off and vents water, allowing for simple and virtually trouble-free cartridge change-outs without the need to shut off the upstream feed water.
Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs with a 1/4 turn.
3/8" FNPT horizontal inlet and outlet ports allow direct or easily adaptable connections to existing plumbing lines

Application: Most standard water, Ice Filtration System
Filter Cartridges are o-ring seal type
Certified by NSF to standard 42 & 53 cyst removal
FDA CFR-21 Compliant materials
Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs with a 1/4 turn

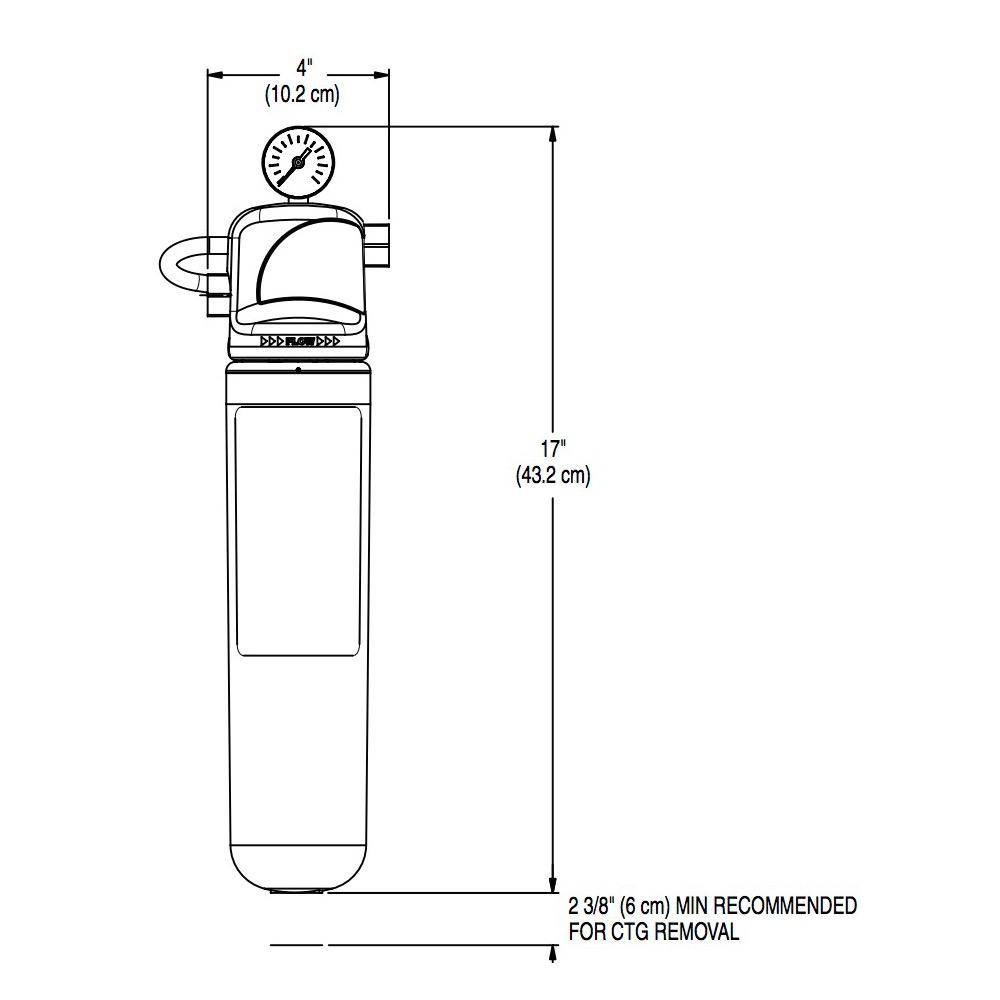

Replacement Cartridge for the 3M ICE120-S Ice Filtration System

5615103 Specifications:
Height:15"
Diameter: 4"
Flow Rate: 1.5 gpm
Capacity: 9,000 gallons
Micron Rating: 0.5 micron (nominal)
Media Type: Carbon Block
Max Water Temp: 100 F
Max Water Pressure: 125 psi
Change Frequency: 6-12 months
